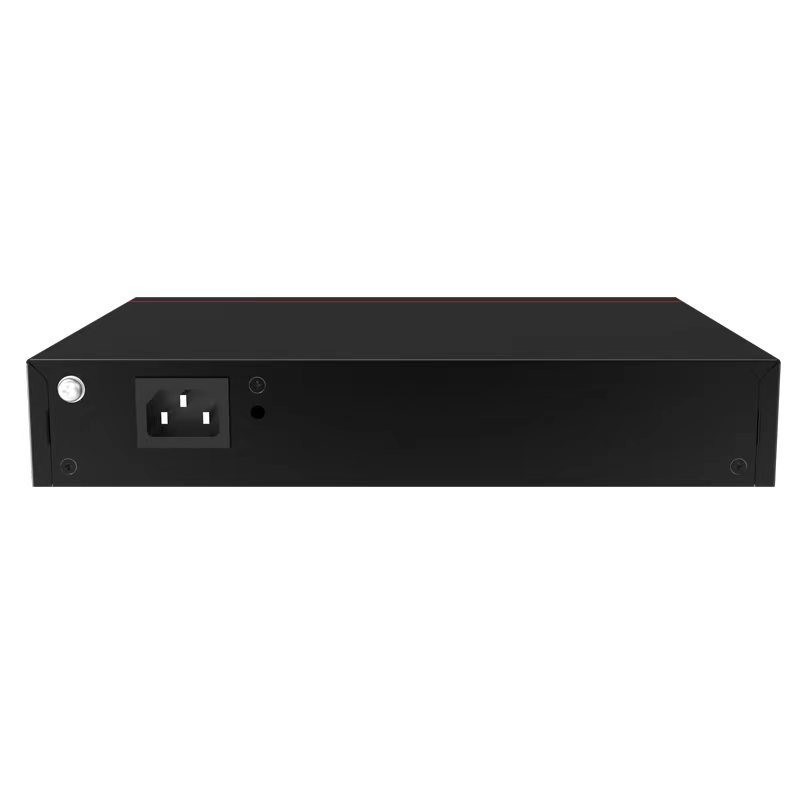

S5735-L10T4X-A-V2 Managed Network Switch Stackable with 102Mpps Transmission Rate
S5735-L10T4X-A-V2 Managed Network Switch Stackable with 102Mpps Transmission Rate
S5735-L10T4X-A-V2 Managed Network Switch Stackable with 102Mpps Transmission Rate
S5735-L10T4X-A-V2 Managed Network Switch Stackable with 102Mpps Transmission Rate
S5735-L10T4X-A-V2 Managed Network Switch Stackable with 102Mpps Transmission Rate
S5735-L10T4X-A-V2 Managed Network Switch Stackable with 102Mpps Transmission Rate
S5735-L10T4X-A-V2 Managed Network Switch Stackable with 102Mpps Transmission Rate

S5735-L10T4X-A-V2 Managed Network Switch Stackable with 102Mpps Transmission Rate

Product Details

Place of Origin: Beijing, China

Brand Name: huayutiancheng

Model Number: S5735-L10T4X-A-V2, S5735-L10T4X-A-V2

Payment & Shipping Terms

Minimum Order Quantity: 2 pieces

Price: $270.00/pieces >=2 pieces

Packaging Details: Carton

Supply Ability: 20000 Piece/Pieces per Month

Get Best Price

Product Details

Product Description
Highlight:
Private Mold:
NO
Products Status:
Stock
Ports:
10
Transmission Rate:
102Mpps
Function:
LACP, QoS, Stackable, VLAN Support
Communication Mode:
Full-Duplex & Half-Duplex
Switch Capacity:
520Gbps/5.2Tbps
Product Name:
S5735-L10T4X-A-V2 Managed Network Switch Stackable Network
Port + Power Supply:
10 10/100/1000BASE-T Ethernet Ports,4 Gigabit SFP
Warranty:
1 Year
Size:
250mm X 180mm X 43.6mm
Weight:
2.22KG
Delivery Time:
Within Two Days
MOQ:
1 Piece
Stock:
Yes
Condition:
New And Original
Port:
Dalian
Private Mold:
NO
Products Status:
Stock
Ports:
10
Transmission Rate:
102Mpps
Function:
LACP, QoS, Stackable, VLAN Support
Communication Mode:
Full-Duplex & Half-Duplex
Switch Capacity:
520Gbps/5.2Tbps
Product Name:
S5735-L10T4X-A-V2 Managed Network Switch Stackable Network
Port + Power Supply:
10 10/100/1000BASE-T Ethernet Ports,4 Gigabit SFP
Warranty:
1 Year
Size:
250mm X 180mm X 43.6mm
Weight:
2.22KG
Delivery Time:
Within Two Days
MOQ:
1 Piece
Stock:
Yes
Condition:
New And Original
Port:
Dalian
S5735-L10T4X-A-V2 Managed Network Switch Stackable with 102Mpps Transmission Rate
Product Description
CloudEngine S5735-L-V2 series switches are ideal for scenarios such as enterprise campus network access and gigabit to the desktop. Built on next-generation, high-performance hardware and software platform, CloudEngine S5735-L-V2 switches stand out with compelling features such as intelligent stack (iStack), flexible Ethernet networking, and diversified security control. They support multiple Layer 3 routing protocols and provide high performance and service processing capabilities.Flexible Ethernet Networking.Diversified Security Control.CloudEngine S5735-L-V2 supports 802.1X authentication, MAC address authentication, and hybrid authentication on a per port basis, and implements dynamic policy delivery (VLAN, QoS, and ACL) to users.Easy Operation and Maintenance. iStack .PoE Function.Perpetual PoE Fast PoE.Licensing.Intelligent O&M . Intelligent Upgrade. Cloud Management. OPS.CloudEngine S5735-L-V2 series switches can be deployed at the access layer of a campus network to build a high-performance and highly reliable enterprise network.Small- or Medium-scale Enterprise Campus Network CloudEngine S5735-L-V2 series switches can be deployed at the aggregation layer of a campus network to build a highperformance, multi-service, and highly reliable enterprise network.Small-scale Enterprise Campus Network With powerful aggregation and routing capabilities of CloudEngine S5735-L-V2 series switches make them suitable for use as core switches in a small-scale enterprise network. Two or more S5735-L-V2 switches use iStack technology to ensure high reliability. They provide a variety of access control policies to achieve centralized management and simplify configuration.Application on a MANCloudEngine S5735-L-V2 series switches can be deployed at the access layer of a MAN(Metropolitan Area Network) to build a high-performance, multi-service, and highly reliable ISP MAN network.
Specification
Product name
S5735-L10T4X-A-V2
Port + Power supply
10 10/100/1000BASE-T Ethernet ports,4 Gigabit SFP
switching capacity
520Gbps/5.2Tbps
Packet forwarding rate
102Mpps
Warranty
                                              1Year
Size
250x180x43.6（mm）
Connect
Ethernet switch
Chassis height
1 U
Power type
Built-in AC power
peak voltage
100 V AC to 240 V
AC, 50/60 Hz
Short term operating temperature
-5°C～+50°C
Storage temperature
-40℃～+70℃
                      Power outlet lightning protection
Differential mode ± 6kV, and common mode ± 6kV
Heat dissipation method
Air-cooled heat  dissipation and intelligent speed adjustment
MAC feature
Comply with IEEE 802.1d standard

Supports automatic MAC address learning and aging

Supports static, dynamic, and black hole MAC entries

Supports source MAC address filtering
VLAN feature
Supports 4K vlans

Voice VLAN Support

Supports the MUX VLAN function

Vlans based on MAC/ protocol /IP subnet/policy/port are supported
If you have any questions, you can ask me and click
S5735-L10T4X-A-V2 Managed Network Switch Stackable with 102Mpps Transmission Rate 0
S5735-L10T4X-A-V2 Managed Network Switch Stackable with 102Mpps Transmission Rate 1
S5735-L10T4X-A-V2 Managed Network Switch Stackable with 102Mpps Transmission Rate 2
S5735-L10T4X-A-V2 Managed Network Switch Stackable with 102Mpps Transmission Rate 3
S5735-L10T4X-A-V2 Managed Network Switch Stackable with 102Mpps Transmission Rate 4
S5735-L10T4X-A-V2 Managed Network Switch Stackable with 102Mpps Transmission Rate 5
S5735-L10T4X-A-V2 Managed Network Switch Stackable with 102Mpps Transmission Rate 6
S5735-L10T4X-A-V2 Managed Network Switch Stackable with 102Mpps Transmission Rate 7
Related Products
Company Profile
S5735-L10T4X-A-V2 Managed Network Switch Stackable with 102Mpps Transmission Rate 8
S5735-L10T4X-A-V2 Managed Network Switch Stackable with 102Mpps Transmission Rate 9
Our Workshop
S5735-L10T4X-A-V2 Managed Network Switch Stackable with 102Mpps Transmission Rate 10
S5735-L10T4X-A-V2 Managed Network Switch Stackable with 102Mpps Transmission Rate 11
Payment & Delivery
S5735-L10T4X-A-V2 Managed Network Switch Stackable with 102Mpps Transmission Rate 12
FAQ
1.How can i get the price? -We usually quote within 24 hours after we get your inquiry (Except weekend and holidays). If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote. 2.Can I buy samples placing orders? -Yes. Please feel free to contact us. 3.What is your lead time? -It depends on the order quantity and the season you place the order. Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity. 4.What is your payment term? -T/T, Western Union, Money Gram, and Paypal. This is negotiable. 5.What is the shipping method? -It could be shipped by sea, by air or by express (EMS,UPS,DHL,TNT,FEDEX and ect). Please confirm with us before placing orders. 6.How do you make our business long-term and good relationship? -a. We keep good quality and competitive price to ensure our customers benefit; -b. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
